LX-800 Suggestion Box
  Not in stock. Direct shipment from factory only.

FEATURES
-Dual platforms - workstation/compact entry server
-uATX size but can fit regular ATX boards (12"x 9.6")
-Front-mounted power supply
-Thermally optimized for dual core processors

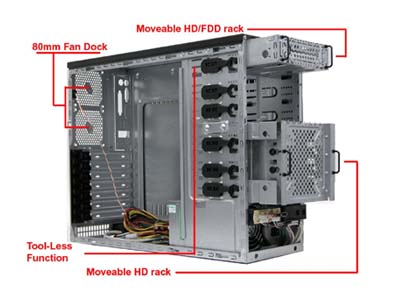

-Flexible & modular design with interchangeable bays up to 8
-Virtually tool-less
-120mm air guide

SPECIFICATIONS
Dimension14.2" x 6.6" x 17.7"
(H) x (W) x (D)
*Measurement of depth is without front bezel.

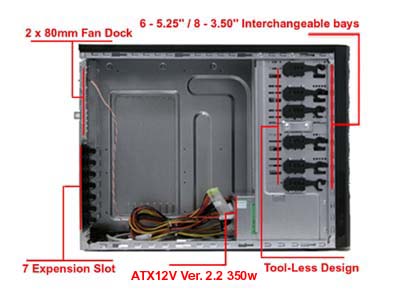

Drive Bay5 x 5.25" + 2 x 3.5"(1 hidden,1 open)
Or 2 x 5.25" + 6 x 3.5"(5 hidden, 1 open)
Top 3 bays can be used either for 3.5" or 5.25". 4/5/6th 5.25" bays can be converted to 4 x 3.5" hidden bays


Form FactoruATX tower

MotherboardMicro ATX, ATX

Expansion Bay7 full size expansion


PSUATX12V Version 2.2 350W

Additional FanRear:2 x 80mm (optional)
Front:1 x 80/90/120mm (optional)
Side:1 x 80/120/140mm (optional)

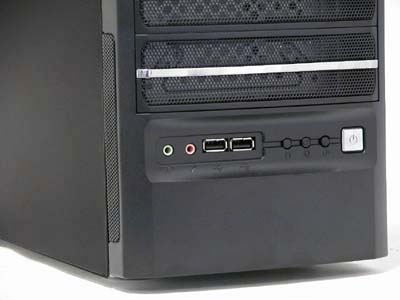

Front Access PortUSB2.0 port x 2
Audio port x 2
(AC97 & HD Plugs)

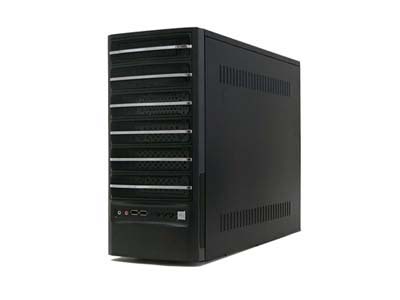

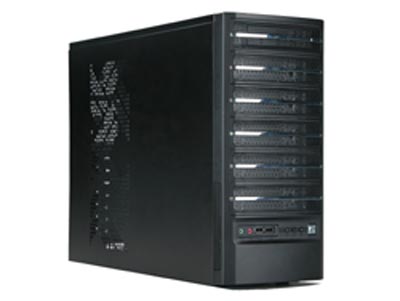

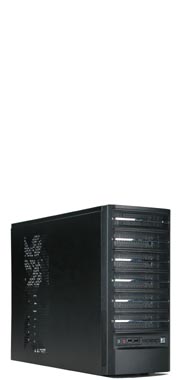

 PRODUCT IMAGE Product Flyer
