SL-D460EXP Suggestion Box
  Not in stock. Direct shipment from factory only!-Input range: 90V~264Vac -Frequency: 47~63Hz -Input Current: 460W 10A/6A @ 115/230 Vac -Efficiency: 80% at full load, nominal line.

FEATURES
-Ideal for Intel/AMD dual-core CPU
-ATX12V Ver.201 compliant
-Dual +12V rails
-Proprietary IC & unique design
-Embedded thermal sensor
-Dual low-noise variable fans
-Various safety protection--
OCP(over-current),OVP(over-voltage),SCP(short-circuit),UVP(under-voltage),OPP(over-power)
-24-pin MB connector
-Peripheral power connector x 4
-Serial ATA connector x 2
-Floppy power connector x 1
-PCI Express connector x 1
-Nickel-plated casing
-Sleeved cables

SPECIFICATIONS
ModelSL-D460EXP

PSUATX12V Version 2.2 460W

Dimension5.5" x 6.0" x 3.3"
(D) x (W) x (H)


Cooling2 x 80mm blue LED fans

MTBF50,000 Hours

ApprovalUL, CSA, FCC

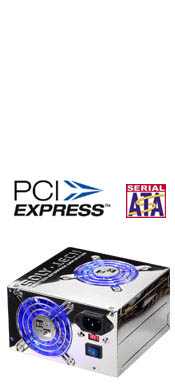

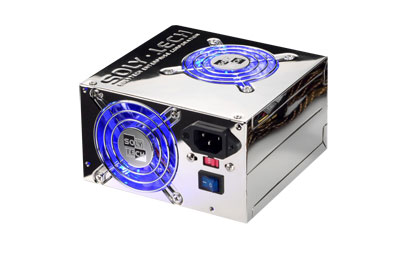

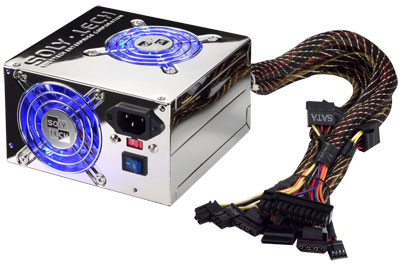

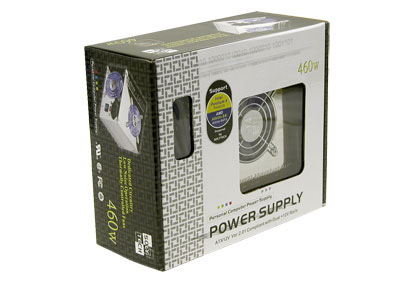

 PRODUCT IMAGE Product Flyer
