AL-B500E Suggestion Box
  Not in stock. Direct shipment from factory only! -Input range: 90~132V or 180V~264Vac -Frequency: 47~63Hz -Input Current:500W 10A/6A @ 115/230 Vac -Efficiency: 65% at full load, nominal line.

FEATURES
-Ideal for Intel & AMD dual-core
systems
-Proprietary IC & unique design
-Embedded thermal sensor
-Dual low-noise variable fans
-Various safety protection--
OCP(over-current),OVP(over-voltage),SCP(short-circuit),UVP(under-voltage),OPP(over-power)
-24-pin MB connector
-Peripheral power connector x 6
-Serial ATA connector x 1
-Floppy power connector x 1
-Sleeved cables
-On/Off switch with green LED
indicator
-Fan speed adjustable knob
-Extruded aluminum casing

SPECIFICATIONS
ModelAL-B500E

PSUATX12V Version 2.2

Dimension5.5" x 6.0" x 3.3"
(D) x (W) x (H)


CoolingDual tri-color LED fans

MTBF50,000 Hours

ApprovalUL, CSA, FCC, TUV

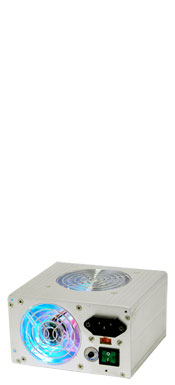

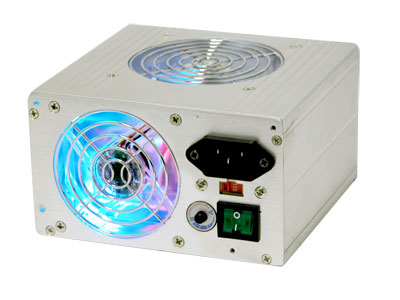

 PRODUCT IMAGE

Click to Enlarge
