AL-8250SFX Suggestion Box
  -Input range: 90V~132Vac or 180V~253Vac -Frequency: 47~63Hz -Input Current: 200W 6A/4A @ 115/230 Vac -Efficiency: 65% at full load, nominal line.

FEATURES
-Proprietary IC & unique design
-Embedded thermal sensor
-Low-noise variable fan
-Various safety protection--
OCP(over-current),OVP(over-voltage),SCP(short-circuit),UVP(under-voltage),OPP(over-power)
-24Pin MB connector
-4Pin +12V connector x 1
-Peripheral power connector x 2
-SATA connector x 2
-Floppy power connector x 1
-upgrade for many e-Machine models

SPECIFICATIONS
ModelAL-8250SFX

PSUSFX12V 250W

Dimension3.94" x 4.92" x 2.5"
(D) x (W) x (H)

Cooling12V Internal Fan

MTBF50,000 Hours

ApprovalUL, CSA, FCC

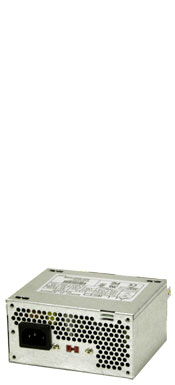

 PRODUCT IMAGE

Click to Enlarge
