EMA-01 Suggestion Box

FEATURES
- Power supply bottom placement
- Clear side window
- Well-folded edges
- Support max VGA length 390mm
- Thermally advantaged
- Total of 8 drive bays
- Spacious internal space

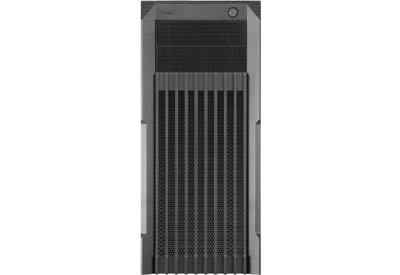

- Mesh front panel
- Room to hide LED strip
- Internal black coating
- Total up to 7x fans
- Top panel with up to 2 120/140mm fans
- Front with up to 2 120/140mm fans
- Retaining water-cooling gromment x 2
- Top mounted 2 x USB3.0, HD audio
- Easy access CPU fan replacement
- Cable management

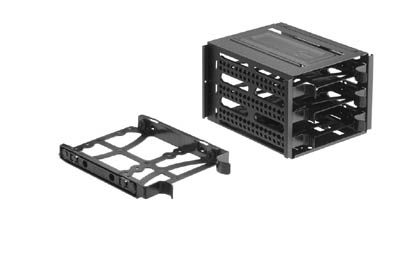

- 2 removable HDD (SSD) cages
- 6 HDD/SSD trays
- Tool less

SPECIFICATIONS
Dimension18.45" x 7.75" x 20.5"
(H) x (W) x (D)



Drive Bay2 - 5.25" Exposed
6 - 3.5"/2.5" Hidden

Form FactorATX Tower

MotherboardMicro ATX, ATX


Expansion Bay7 Full Size Expansion

PSUOptional ATX12V or EPS12V

Additional FanUp to 7 fans


Front Access PortUSB3.0 Port x 2
HD Audio Port x 2

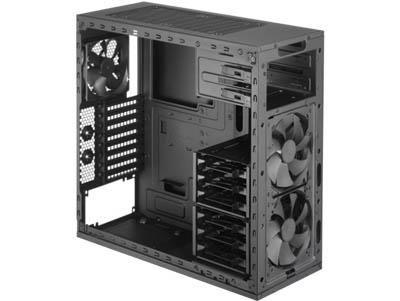

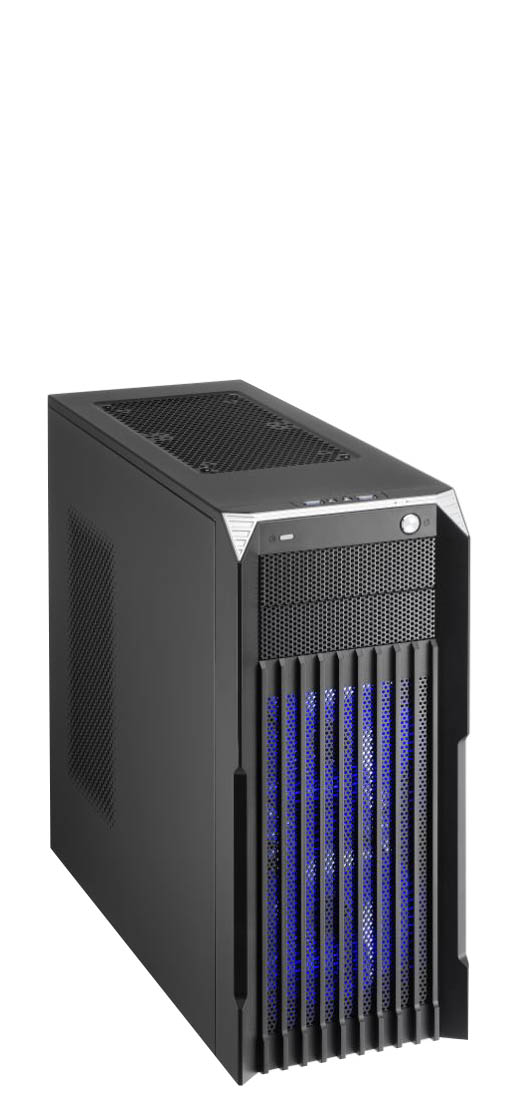

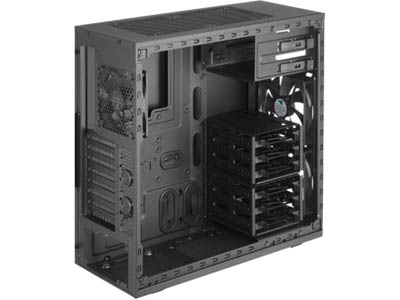

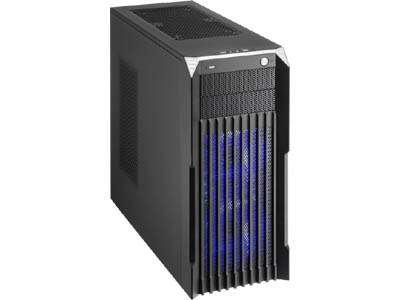

 PRODUCT IMAGE

Click to Enlarge
