MD100-BK Suggestion Box
  Direct shipment from factory only

FEATURES
-Sturdy construction
-Thermally optimized
-Excellent EMI shielding
-5.1 liters
-Front panel glossy finish

DC-DC board specification:
Output__Tolerance__Regulation(Max)
+5V_____-5%~+5%______5.0A
+3.3V___-5%~+5%______5.0A
+12V____-5%~+7%______2.5A
-12V____-10%~+10%____0.1A
+5Vsb___-5%~+5%______1.5A
Total power 80W

SPECIFICATIONS
Dimension2.5" x 11.75" x 11.9"
(H) x (W) x (D)


Drive Bay1 - 5.25" Exposed
1 - 3.5" Exposed
1 - 3.5" Hidden (standard size)


Form FactorSmall form factor


MotherboardMini ITX


Expansion Bay2 full size expansion


PSU60W external

Additional Fan

Front Access PortUSB2.0 Port x 2
Audio Port x 2
(AC97 & HD Plugs)

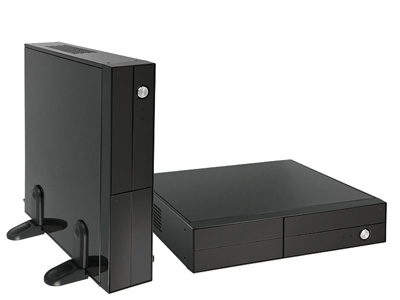

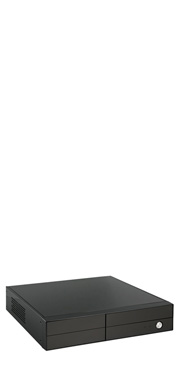

 PRODUCT IMAGE
