AL-A300ATX Suggestion Box
  -Input range: 90~132V or 180V~264Vac -Frequency: 47~63Hz -Input Current:350W 8A/4A @ 115/230 Vac -Efficiency: 65% at full load, nominal line

FEATURES
-Proprietary IC & unique design
-Embedded thermal sensor
-Low-noise variable fan
-Various safety protection--
OCP(over-current),OVP(over-voltage),SCP(short-circuit),UVP(under-voltage),OPP(over-power)
-24-pin MB connector
-4Pin +12V connector x 1
-Peripheral power connector x 2
-Serial ATA connector x 2
-Floppy power connector x 1

SPECIFICATIONS
ModelAL-A300ATX/SL-8320BTX

PSUATX12V Version 2.2


Dimension5.5" x 6.0" x 3.3"
(D) x (W) x (H)


Cooling80mm Fan


MTBF50,000 Hours

ApprovalUL, CSA, FCC

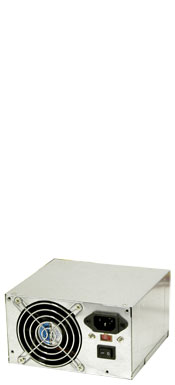

 PRODUCT IMAGE
